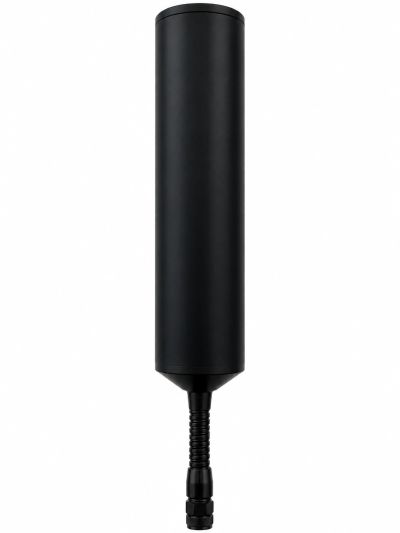

380 MHz - 12 GHz Ultra-Wideband Spring Antenna

KGN3M8-12G0-2.5V-HP

The KANTENNAS KGN3M8-12G0-2.5V-HP is an advanced, ultra-wideband, high-power omnidirectional antenna designed for demanding RF applications, including defence communications, counter-UAS systems, RF spectrum monitoring, electronic support, passive RF detection, and specialized wireless systems.

Operating continuously from 380 MHz to 12 GHz, this broadband antenna provides exceptional frequency coverage across UHF, L-band, S-band, C-band, and X-band frequencies. Its wide operating bandwidth makes it particularly suitable for multiband RF systems requiring a single antenna solution for transmitting and receiving signals across a broad frequency spectrum.

The antenna features a rugged, spring-mounted mechanical configuration designed to provide flexibility and accommodate movement in portable, mobile, and fixed RF installations. The integrated spring assembly helps reduce mechanical stress caused by movement and incidental impacts, making it suitable for applications where rigid antenna mounting may be less desirable.

Featuring vertical polarization and omnidirectional azimuth coverage, the KGN3M8-12G0-2.5V-HP is designed to provide 360-degree horizontal RF coverage without requiring directional antenna alignment. This makes it particularly useful for wideband RF receivers, spectrum monitoring equipment, electronic support systems, and passive RF sensing platforms.

• Counter-UAS and Drone Detection Systems

Suitable for broadband RF detection and monitoring systems operating across multiple frequency bands associated with unmanned aircraft systems, including 900 MHz, 1.2 GHz, 2.4 GHz and 5.8 GHz.

• RF Spectrum Monitoring and Surveillance

Ideal for wideband spectrum monitoring receivers, broadband RF signal analysis, frequency surveillance and multiband signal detection systems.

• Electronic Support and Passive RF Sensing

Designed for integration into electronic support equipment, passive RF monitoring platforms, wideband receivers and specialized signal detection systems.

• Defence and Tactical RF Systems

Suitable for specialized defence communications equipment, mobile RF platforms, tactical systems and multiband radio frequency applications.

• RF Test and Measurement

Applicable to laboratory and field RF measurements, broadband spectrum analysis, receiver evaluation and professional RF test equipment.

• Mobile and Vehicle-Mounted RF Equipment

The spring-mounted configuration provides mechanical flexibility for mobile installations and specialized RF platforms subject to movement or vibration.

380 MHz - 12 GHz

< 2.0:1

Vertical

Omnidirectional

Approx. 70-80 deg

2.5 dBi

50 W

TNC Male or N-type Male

 Ø82 × 450 mm
